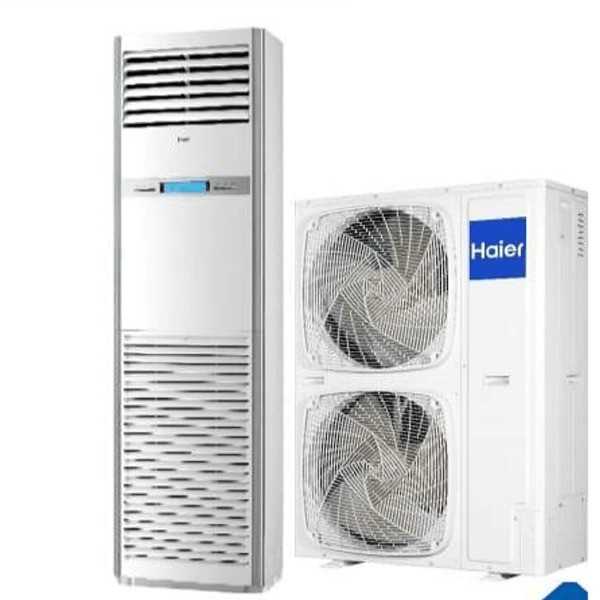

Haier 48E

🔧 Basic Details

• Model: HPU‑48E/DC

• Capacity: 4 Ton (~48,000 BTU cooling & heating)

• Type: DC Inverter floor-standing cabinet, Heat & Cool

• Refrigerant: R‑410A

🔌 Power & Performance

• Outdoor Power Supply: 3‑phase, 400 V / 50 Hz

• Indoor Power Supply: Single‑phase, 220–230 V / 50 Hz

• Rated Power Input: Cooling ~4.4 kW; Heating ~4.3 kW (or ~2.5 kW per some sources)

• Energy Efficiency (EER/COP): ~2.8 W/W

• Airflow (High): ~1,150–2,000 m³/h

🏠 Dimensions & Weight

• Indoor Unit: ~600 × 350 × 1,765–1,880 mm; Net weight ~40 kg, Gross ~52 kg

• Outdoor Unit: ~960 × 340 × 1,250 mm; Net weight ~48 kg, Gross ~54 kg

🔇 Noise Levels

• Indoor: ~36–45 dB(A)

• Outdoor: ~52 dB(A)

✨ Key Features

• T3-rated DC inverter compressor – stable performance in extreme heat

• 3D airflow system – wide and long air distribution (up to 15 m reach)

• Touchscreen/LCD panel and remote control included

• Auto-restart after power outage, copper condenser coils

• Durable “gold-fin” anti-corrosion coating on coils

🛡️ Warranty

• Compressor: Typically 3 years (retailer-dependent)

• Other Parts: Generally 1 year
